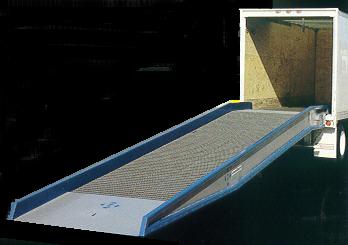

Yard Ramps

Whenever you need it, a Yard Ramp moves there easily. Faster turnarounds in shipping and receiving areas will save time and money when you use a Yard Ramp. Choose from a wide selection of rugged steel models for years of trouble-free service and complete ramp mobility. One operator can move the unit anywhere in the yard, across the street or next to the warehouse easily. And it can be stored inside or out.

If you have ground level plants with out loading facilities, a Yard Ramp is an efficient alternative to costly dock-well construction as well as a safer, faster alternative to other types of loading/unloading equipment.

For production line feeding or in warehouse use, a Yard Ramp helps deliver materials closer to where they are used or stored, the ramp can be used indoors as well as out. Saves time, manpower, fuel, and equipment uble-handling. A Yard Ramp is the logical choice to solve tough freight handling problems.

Design features

• Self cleaning steel traction grating
• Hydraulic positioning system
• 6-foot level off for easy end load access.
• Capacities: 16,000, 20,000, 25,000 or 30,000 pounds
• Standard and custom designs available
• Options include: Ramp Clamp for short towing positioning
• Saf-Lock Towbar for longer towing distances
• Yard Ramps available without undercarriage

6 foot level-off Allows for easy end load access, with a 15 inch tread plate lip extending into the trailer or over the dock.	Double acting hydraulic pump Allows for smooth and quick raising of front lip to the proper dock or trailer height
Heavy-duty wheels Makes positioning the ramp easy.	Heavy-duty formed steel side girders Provide main load bearing capability, multiple Z cross members are welded to the side girders, then steel grating is welded to the Z member to form a one-piece construction.
