TKO® DOCK DOORS
| The industry's most
affordable, full-featured knockout door. The WelterWeightT dock door
is the one facility planners choose to add doorway convenience,
efficiency and cost-savings to the dock of any new construction project.
The door features the TKO impact design, which includes spring-loaded
steel guidance pins and rugged insulated panels.
Some of the many benefits include: No Roller Wheels! TKO® dock doors have
spring-loaded steel plungers. Under normal operation, TKO doors have no
moving parts. No Weather seal in Doorway! Door-mounted weather seal
rises with the door...no exposed seal in the doorway to get torn off. No Doorway Obstructions! TKO door track mounts tight and flush to the wall for complete doorway access. No Flimsy Track! Indestructible Impact-A-TrackT
door track (optional) absorbs the heaviest impacts. Door is never out of
service from track damage. |
 |
 |
Available Options Include:
|
 |

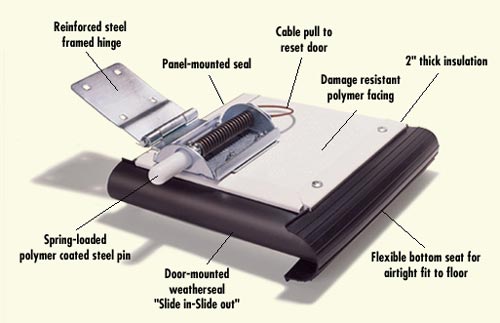

| CUTAWAY
|
 |
Impact-A-TrackT
Guide Track
Nearly 95% of all standard door damage occurs at the door track. This
part of the door is incapable of withstanding that kind of punishment,
especially the sheet metal tracks found on standard doors. TKO Doors
developed its rugged, all-plastic Impact-A-Track guide track to totally
eliminate this problem. When hit, the track bends but does not break and
always ensures smooth door operation. There is no need to set up
stanchions in front of the guide, saving precious dock space. Track
V-Groove permits door to be knocked out, but not pushed in, for doorway
security and wind resistance. |
|
Standard Track |
Optional Track |
|
| Guide Pins
Match up standard door guide rollers against a five-ton forklift and
the rollers lose every time. And so does dock doorway efficiency. TKO
Doors has the solution, with heavy-duty steel pins that are as strong as
railroad spikes. The spring-loaded pins are attached to door panels in a
steel housing. When the door is hit, the panel transmits the force to
the pins. The pins slide out of the guide track with minimal panel
resistance to the blow. Slide the pins back into the track with a quick
pull on the panel and the doorway is sealed. |
